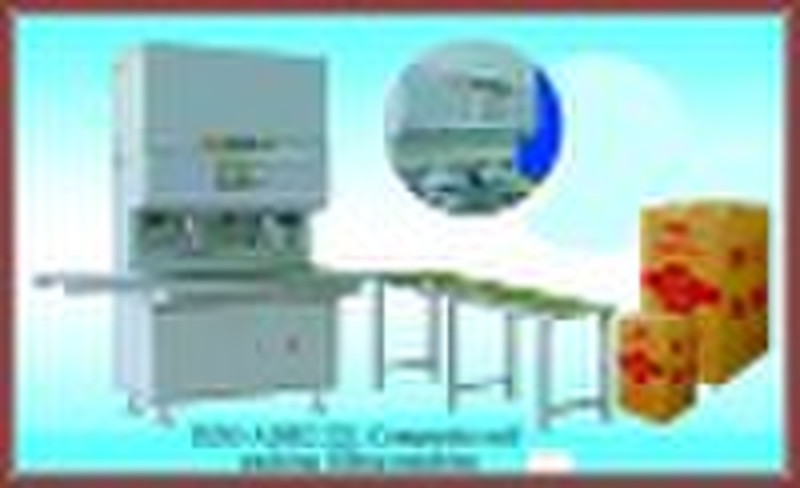

DZG-ADR2 bag filling machine

DZG-ADR2 bag filling machine oil bag filling machine,cooking oil bag filling machine,edible oil bag filling machine Features: 1) The filling packing machines are designed for liquid composite soft packing bags 2) Unique triune design lets us turn on caps and filling and pressure caps with coherent motion 3) Roots flow meter with 3 high accuracy and equipped with imported multifunction secondary instrument with LCD display makes capacity adjustment simple, quick and accuracy 4) All of main air-actuated and electrical parts are imported parts, which ensures the steady performance and excellent quality of the machine 5) The machine are set up with an elevated tank, a system of inner circle pump and equipped with control device for outer pump, which makes the install simple, convenience and quick Main technical parameters: 1) Filling capacity: 15 - 25L (soft package) 2) Production capacity: 180 - 220 bags/h (22L/bag) 3) Filling accuracy: ≤0.3% 4) Power supply: 3N - 380V±10% 5) Power consumption: ≤1kW 6) Power of outer pump: ≤3kW 7) Air source pressure: 1.0 - 1.2MPa 8) Working air pressure: 0.6 - 0.7MPa
