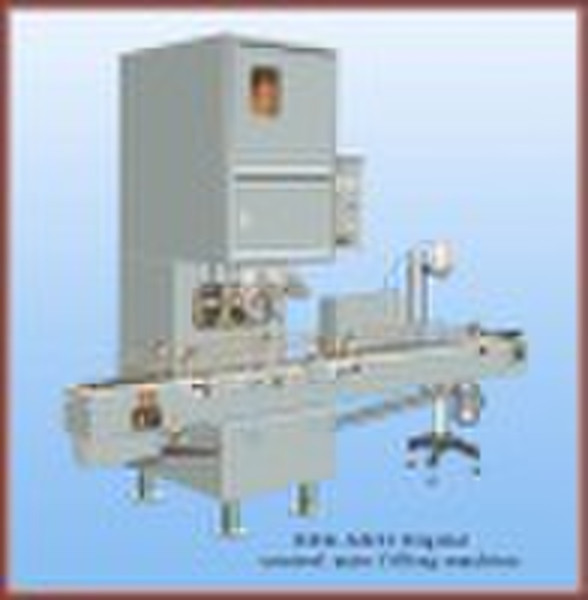

DZG-AX23 packing machinery

DZG-AX23packaging machinery liquid filling machine,oil filling machine,bottle filling machine DZG-AX23 uses the technology of step filling with straight-line stepless speed regulation and digital control filling volume. It is equipped with an air-actuated screwing capping device and a suck-back leakproof system. Main air-actuated and electrical parts adopt imported parts. It features high filling accuracy, steady performance, easy and quick operating and adjusting capacity and excellent quality. Specification: 1. Filling capacity: 0.5 6L 2. Production capacity: 600 800 Bottle /hour (1L) 400 600 Bottle /hour (2L) 3. Filling accuracy: ±5g 4. Working pressure: 0.6 0.7MPa 5. Power supply: 3P 380V 50Hz;220V 50Hz 6. Power consumption: ≤1kw 7. Supply air pressure: 1.0 1.2MPa Main Characteristic DZG-AX23 uses technology of step filling with straight-line stepless speed regulation, digital control filling volume and is equipped with air-actuated screwing capping device and suck-back leakproof system. Main air-actuated and electrical parts adopt import parts. It features high filling accuracy, steady performance, easy and quick operating and adjusting capacity and excellent quality etc. 1) Adopting high accuracy Roots flow meter equipped with Japanese high accuracy pulse generator, PLC and color touching screen termination made by Japan, it makes the measurement and filling control system work more accurate and reliable 2) Changing termination display from discrete to centralization,regulation and control can be in the same screen and easy to operate 3) English menu is adopted on the operation platform of display termination. The human-machine interface screen features parameter setting and display of working status, help information, fault warning and can be operated on it intuitionally and easily 4) The measurement system has function of static and dynamic compensation. The former can sets pre-setting according to practical flow pressure. The former can sets initial lead according to practical flow pressure. The latter can automatically compensate quantity deviation resulted from liquid temperature difference effectively the filling accuracy 5) New filling spout of unique design for leak proof and suck-back system protects job site and containers from pollution 6) Filling speed can be arbitrarily set. It effectively solves the problem of foaming overflow leaded by pump pressure variation in fast filling 7) Main electrical and pneumatic parts are all import parts. It ensures the system reliability, accuracy, stability and durability Main configure: 1) 2filling heads (stainless steel panel) 2) Length of conveyer 3m Matched Motor : (stepless speed regulation) 1.1kW I (output run and motor input run):1/25; Conveyor direction: left---right Or right---left Adjustable range (Width): 50 200mm 3) Vacuum suck-back leakproof system 4) Double speed filling device 5) 140mm double stainless steel plate chain (conveyor) Main parts choosen Easy Use 5.7 inch colorful touch screen Man-machine interface Japanese programmable controller (Mitsubishi) France Schneider Electric; Idec Japan electrical component; German Festo electromagnetic valve; Taiwan 24V press-stabilization.
