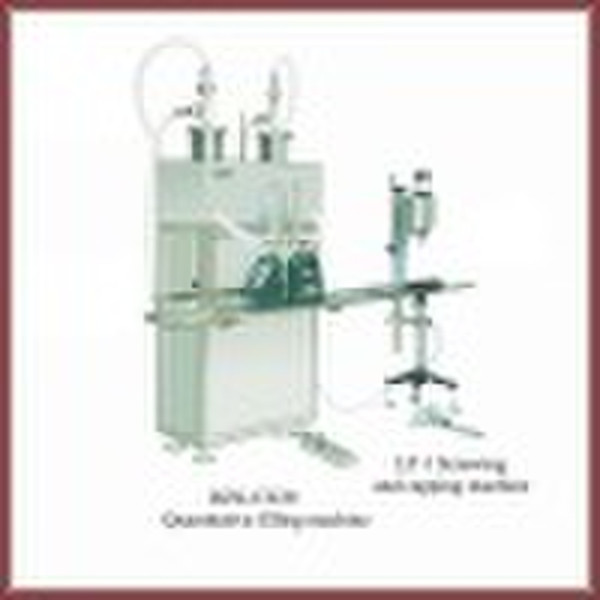

DZG-CX20 liquid filling machine

DZG-CX20 packing machine liquid filling machine,liquid packing machine,oil packing machine DZG-CX20 filling machine is designed for twin cylinder piston air-actuated drive and used for quantitative filling of high viscosity liquid such as seed oil, lubrication oil and chemical liquid Adjustable scope of the filling capacity is 500 - 5,000ml. The filling speed is adjustable as well. The production capacity reaches 300 - 700 bottles/hour. Filling error is less than 0.5% in the match of machine and air-actuated device. There is no leakage in the production with specifically designed filling spout. The machine can work periodically and continuously and perform total process of packing oil product if it is equipped with LY-1 screwing capping machine and JTG-B1 electromagnetic induction sealing machine Main technical parameter 1) Filling capacity: 0.5 - 5L 2) Production capacity: 300 - 700 bottles/h (4L/bottle) 3) Filling accuracy: ≤0.5% 4) Working pressure: 0.6 - 0.7MPa 5) Supply air pressure: 1.0 - 1.2MPa 6) Fan delivery: ≥0.4m³
