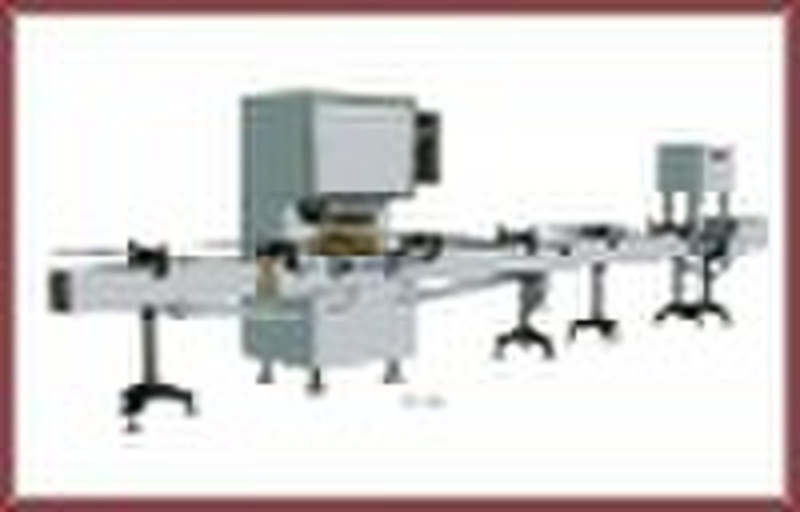

DZG-CX64 piston filling machine

DZG-CX Piston filling machine oil filling machine,liquid packing machine,machine Specification: 1. Filling capacity: 100 1000ml 2. Production capacity: 1800 2100 Bottle /hour (250ml) Filling accuracy: ±3g 3. Working pressure: 0.6 0.7MPa 4. Power supply: 3P 380V 50 60Hz; 110/220V 50 60Hz 5. Power consumption: ≤1kw 6. Supply air pressure: 1.0 1.2MPa Main Characteristic DZG-CX64 uses technology of step filling with straight-line stepless speed regulation, digital control filling volume and suck-back leakproof system. Main air-actuated and electrical parts adopt import parts. It features high filling accuracy, steady performance, easy and quick operating and adjusting capacity and excellent quality etc. DZG-CX64 is designed for 6 cylinders piston air-actuated drive and used for quantitative filling high viscosity liquid such as lube oil, brake oil, dish washing and chemical liquid etc. Adjustable scope of the filling capacity is 100 1000ml. The filling speed is adjustable as well. The production capacity reach at 1800 2100bottles/ hour (250ml). Filling error is less than 0.3% in the match of machine and air-actuated device. There is no leakage in production by specific design filling spout. 1) Adopting high accuracy Roots flow meter equipped with Japanese high accuracy pulse generator, PLC and color touching screen termination made by Japan, it makes the measurement and filling control system work more accurate and reliable 2) Changing termination display from discrete to centralization,regulation and control can be in the same screen and easy to operate; 3) English menu is adopted on the operation platform of display termination. The human-machine interface screen features parameter setting and display of working status, help information, fault warning and can be operated on it intuitionally and easily; 4) The measurement system has function of static and dynamic compensation. The former can sets pre-setting according to practical flow pressure. The former can sets initial lead according to practical flow pressure. The latter can automatically compensate quantity deviation resulted from liquid temperature difference effectively the filling accuracy; 5) New filling spout of unique design for leak proof and suck-back system protects job site and containers from pollution; 6) Filling speed can be arbitrarily set. It effectively solves the problem of foaming overflow leaded by pump pressure variation in fast filling; 7) Main electrical and pneumatic parts are all import parts. It ensures the system reliability, accuracy, stability and durability 9. Main configure: 1) 6 filling heads (stainless steel panel) 2) Length of conveyor 4m Matched Motor : (stepless speed regulation) 1.1kW I (output run and motor input run):1/25; Conveyor direction: left---right Or right---left Adjustable range (Width): 50 200mm 3) Vacuum suck-back leakproof system 4) Double speed filling device 5) 83 or 110 mm double stainless steel plate chain (conveyor) 10. Main parts choosen Easy Use 7.7 inch colorful touch screen Man-machine interface Japanese programmable controller (Mitsubishi) France Schneider Electric; Idec Japan electrical component; German Festo electromagnetic valve; Taiwan 24V press-stabilization.
